RESPIRATORY PRODUCTS GUIDE
FILTER OUT THE RISK
For over ten years, Safety Works has provided the market with high quality reusable and disposable respirators that are comfortable, lightweight and help workers stay safe. Now, PIP is excited to bring you the NEW Safety Works® Respiratory Product line, providing an excellent solution to keep you safe, hazard free, in alignment with OSHA regulation and enforcement of respirable crystalline silica standard.
DOWNLOAD THE BROCHUREVIEW PRODUCTS

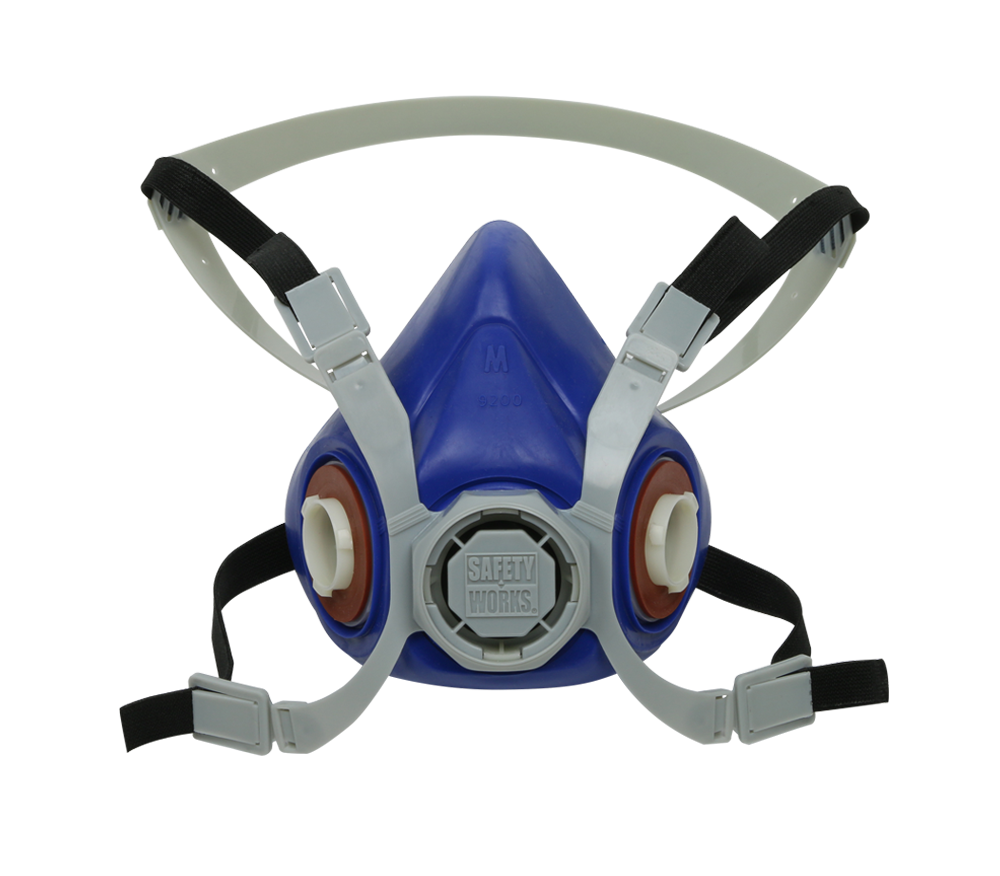

HALF-MASK
- Soft facepiece for enhanced comfort
- Unique hygiene guard keeps mask clean during storage
- Easy-to-adjust, comfortable head strap
- Lightweight, well contoured faceseal for enhanced comfort and fit
COMPATIBLE WITH:

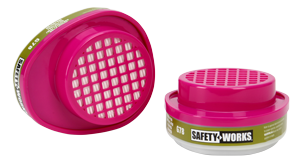

PRO Multi-Purpose
SWX00326

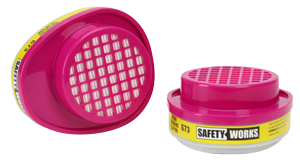

Multi-Purpose
SWX00325

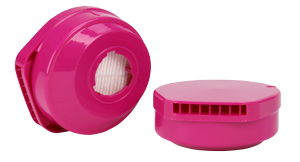

Toxic Dust
SWX00324

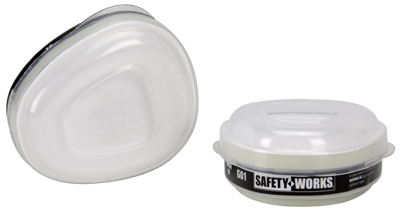

Paint & Pesticide
SWX00322

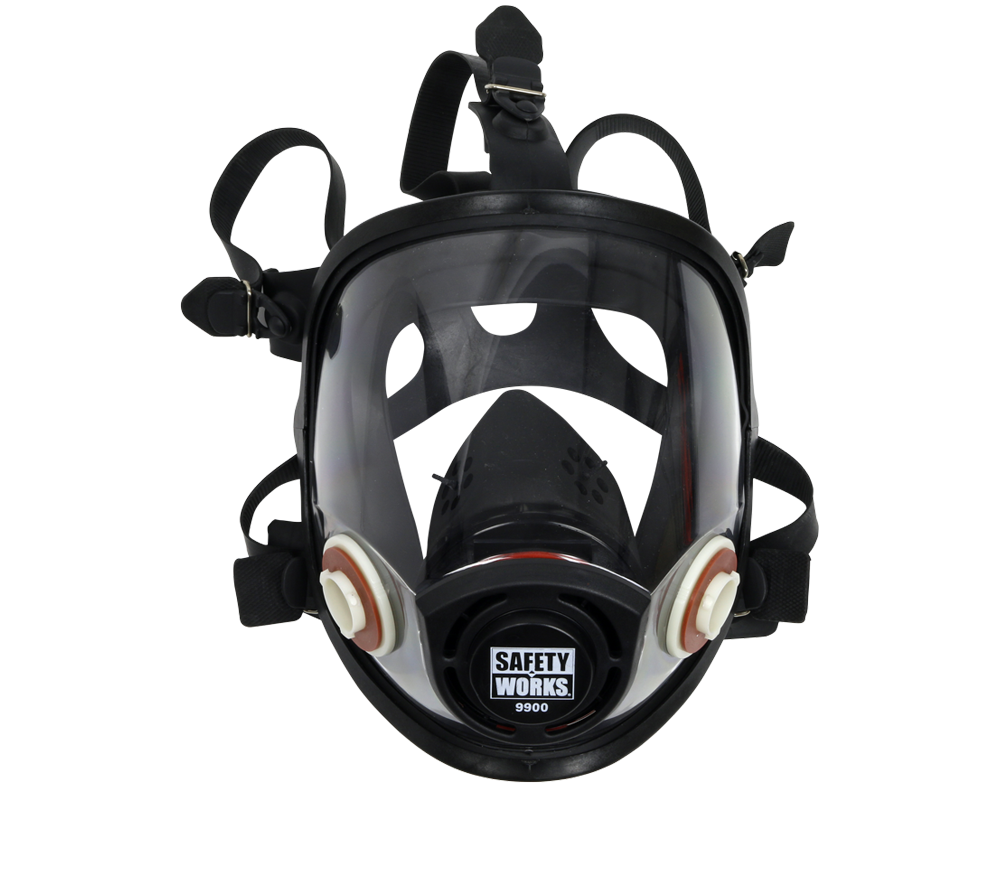

FULL FACEPIECE
- Higher level of protection covering eye and face
- Helps protect against liquid splashes and irritating vapors
- Wrap around lens for excellent field of vision
- Integral nose cup for reducing fogging
- Soft facepiece for enhanced comfort
COMPATIBLE WITH:
PRO Multi-Purpose
SWX00326
Multi-Purpose
SWX00325
Toxic Dust
SWX00324
Paint & Pesticide
SWX00322

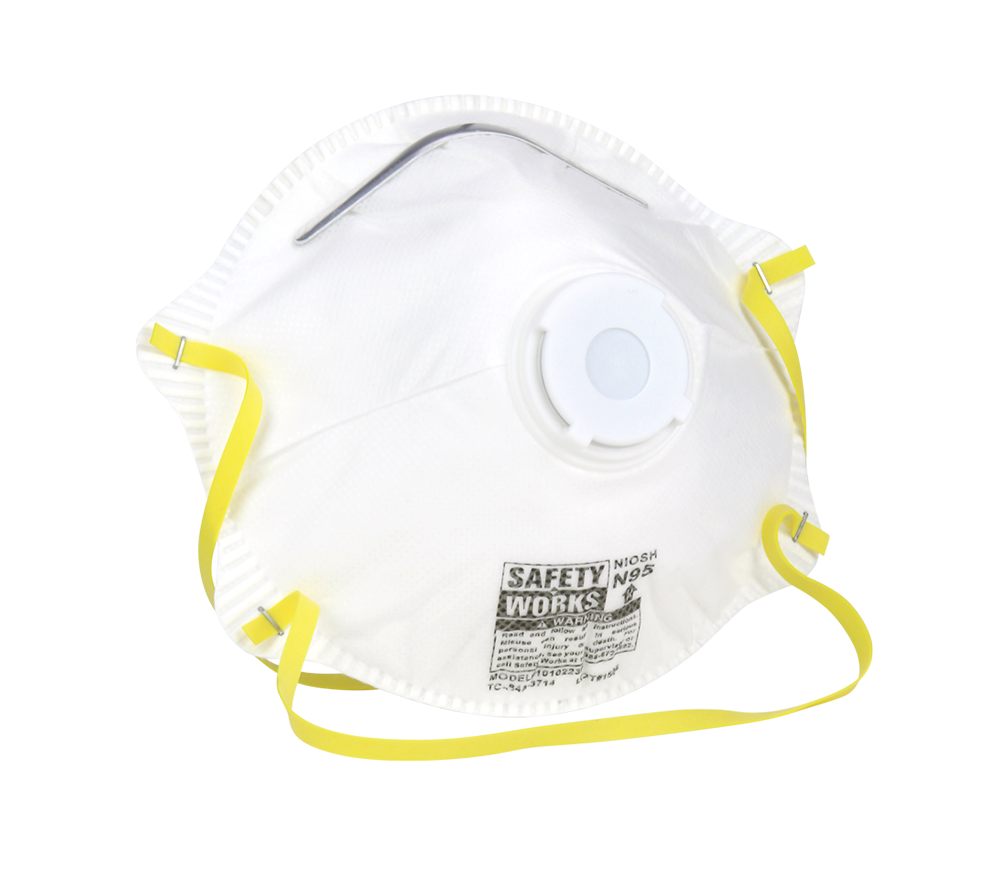

DISPOSABLE
- Designed for easy breathing
- Adjustable nose-clip improves fit and seal
- Dual point elastics for extra secure fit
- Moldable metal noseband helps reduce fogging of glasses
EVALUATE YOUR NEED
The tables below will assist in selecting a respirator that will provide you with the best protection for your work environment or task. Before using these respirators, you must determine the following:
1. The type of contaminant(s) for which the respirator is being selected.
2. The concentration level of contaminant(s).
3. Whether the respirator can be properly fitted on the wearer’s face. All respirator instructions, warnings and use and time limitations must also be read and understood by the wearer before use. Before use of these respirators, a written respiratory protection program must be implemented, meeting all the requirements of OSHA 29 CFR 1910.134, including training and fit testing.
Spray Painting/Coating |
Sanding & Grinding |
Welding |
Abatement |
Cement Work |
Cleaning & Janitorial |
Agriculture |
Construction |
Manufacturing |
Pharmaceutical Manufacturing |
Chemical Manufacturing |
|
POTENTIAL |
Solvent Based Water Based Latex |
Particulate |
Welfume Stainless steel & Galvanized |
Lead & Asbestos Mold |
Silica/Dust |
Bleach Ammonia General Cleaning Products |
Pesticides & Insecticides | Particulate |
Solvents Particulate |
Particulate |
Sulfer Dioxide Chlorine Ammonia |
CARTRIDGE |
OV**/P95 | N95 |
N95 Nuisance OV**/P95 |
P100 Nuisance OV**/N95 - P100 |
N95 |
AG/P95 AM/MA/P95 0V/P95 |
OV/AG/P95 - P100 | N95 |
OV N95 |
N95/P100 |
AG/P95 AM/MA/P95 |
RESPIRATORY RATING
| Letter class | Description | Number Class | Description |
|---|---|---|---|
N |
Not oil resistant | 95 | Removes 95% of all particles that are at least 0.3 microns in diameter |
R |
Resistant to oil | 99 | Removes 99% of particles that are at least 0.3 microns in diameter |
P |
Oil proof | 100 | 99.97% of all particles that are 0.3 microns in diameter or larger. HE or HEPA quality filter |
IMPORTANT: Respirator and cartridge type must be chosen based on the contaminant plus airborne concentration and the necessary Assigned Protection Factor (APF). Refer to WARNING below.
WARNING: These respirators help protect against certain airborne contaminants. Misuse may result in sickness or death. For proper use, the wearer must read and understand User Instructions provided as a part of product packaging, see your supervisor. Time use limitations may apply.
Important — Before using these respirators, you must determine the following:
1. The type of contaminant(s) for which the respirator is being selected.
2. The concentration level of contaminant(s).
3. Whether the respirator can be properly fitted on the wearer’s face. All respirator instructions, warnings and use and time limitations must also be read and
understood by the wearer before use. Before use of these respirators, a written respiratory protection program must be implemented, meeting all the
requirements of OSHA 29 CFR 1910.134, including training and fit testing.
